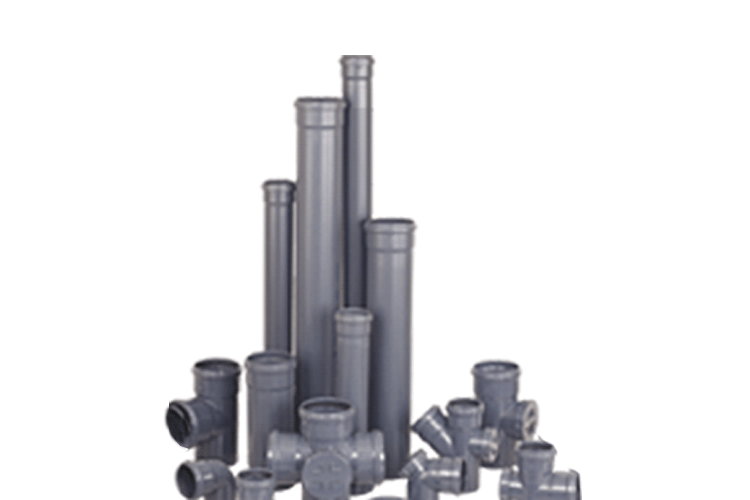

SWR PIPE



SWR Pipe Dimension Chart

Nominal outside diameter (D) mm Tolerance on outside diameter mm Wall Thickness Type-A(A)mm Wall Thickness Type-B(A)mm Wall Thickness (Nonstandard)(t)mm
min max min max min max
75 +0.3 1.8 2.2 3.2 3.8 1.4 1.6
90 +0.4 1.9 2.3 3.2 3.8 - -
110 +0.4 2.2 2.7 3.2 3.8 1.5 1.65
160 +0.5 3.2 3.8 4.0 4.6 2.7 3.2

Features & Benefits

  • Smooth inner surface.
  • EPDM rubber link joint.
  • Uniform wall thickness.
  • Non corrosive.
  • Lightweight & strong.
  • Easy to install.
  • UV Stabilized-Wheather resistant.
  • Durable, Long life & Economical.
  • High quality Standard.
  • Maintenance Free
